1、多層膜模型

通過之前的建模與擬合的詳細描述少办，這里建立三層層狀模型苞慢，如圖4-9所示，其中圖4-9(a)為沉積的系統的橫截面示意圖英妓，圖4-9(b)等效的光學模型圖挽放，第1層為沉積之前裝置測試擬合結果等效層(Equivalent layer)，第二層為沉積薄膜層(CU₂Ofilm)蔓纠，第三層為Au/Si基底層(Au/Si substrate)辑畦。

圖4-9沉積系統截面及其擬合模型示意圖

2、擬合步驟

首先把沉積之前裝置測試得到的數據先用逐點擬合模型進行擬合得到光學常數n腿倚、k及厚度d纯出，然后建立三層模型并分段擬合。300nm-500nm用Lorentz Oscillator+Drude模型擬合，得到n暂筝、k箩言、d、焕襟、陨收；然后在此基礎上500nm-800nm波段用逐點擬合得到該段的n、k鸵赖、务漩、。

3它褪、沉積薄膜層的光學常數

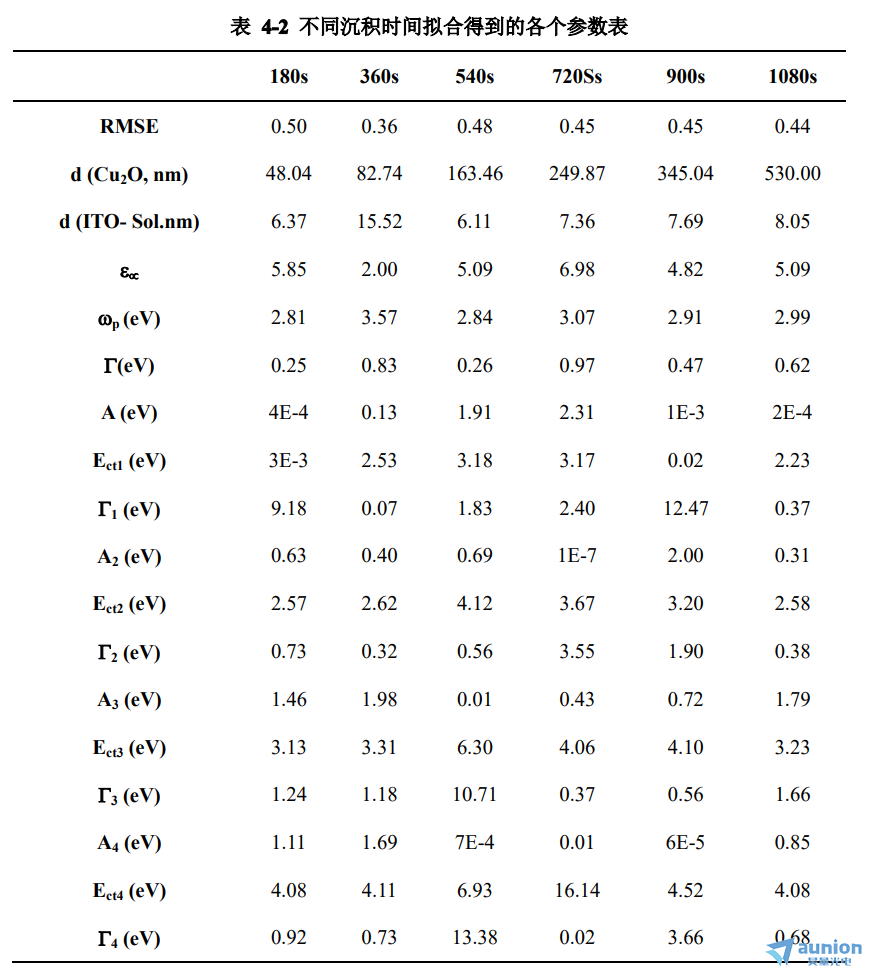

通過層狀模型分段擬合饵骨，得到不同沉積時間的在300nm–800nm波段的各個擬合參數如表4-2所示。其中RMSE代表擬合的均方根誤差茫打，可以看到不同時間擬合得到的RMSE都比較小居触，在0.36-0.50之間，說明該擬合結果較為可靠包吝。表4-2中d(CU₂O,nm)代表擬合得到的沉積層的厚度，d(ITO-Sol.nm)代表等效層的擬合厚度源葫；诗越、Γ對應Drude中的等離子體頻率及阻尼頻率；A息堂、E_ct嚷狞、Γ(1、2荣堰、3床未、4）分別對應LorentzOscillator的振幅、中心能量和展寬能量振坚。

4薇搁、光學常數的演變

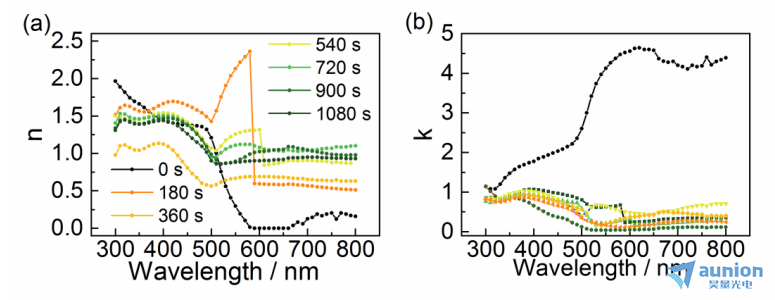

圖4-10是經過擬合得到的n和k，從圖中可以看到不同沉積時間下得到的曲線隨波長的變化大致趨勢一致渡八，但在細節方面及數值上會有變化啃洋。

從圖4-10(a)折射率n值來看，沒有沉積之前即0s時屎鳍，n值從300nm-800nm不斷減小宏娄，在300nm-500nm波段平緩，500nm處驟減逮壁，600nm-800nm達到zui小值且有波動孵坚。與0s相比，不同沉積時間在300nm-500nm波段每個沉積時間的變化趨勢一致，數值上180szui大卖宠，360szui小巍杈，其余介于二者之間；都在330nm和410nm附近存在波包逗堵。在500nm-800nm波段秉氧，變化趨勢比較相似，數值上比0s的大蜒秤，但是存在波動汁咏，特別是180s在600nm附近存在驟減。

從圖4-10(b)消光系數k值來看作媚，0s時k值從300nm-800nm不斷增加攘滩，在300nm-500nm波段平緩，500nm處驟增纸泡，600nm-800nm達到峰值且有波動漂问。在500-800nm波段歸結于Au基底的等離子體共振吸收。和0s相比女揭，不同沉積時間300nm-500nm波段整體數值上較小蚤假，且變化趨勢不一致，在500nm-800nm波段減小且趨于平穩吧兔。

綜合n磷仰、k值的表現知在短波段(300nm-500nm)比在長波段(500nm-800nm)更能反應出沉積層的CU₂O的信息，故而后面的研究分析著重在該波段境蔼。

圖4-10擬合得到的不同沉積時間薄膜的光學常數(a)灶平、n；(b)箍土、k
