橢偏儀在位表征電化學沉積的系統搭建(三)-應用案例
1.3應用案例
橢偏儀在位監測已經廣泛應用于薄膜生長秉犹、顆粒和生物大分子的吸附等領域蛉谜。下面介紹一下橢偏儀在位監測在薄膜生長和顆粒方面的案例。
1.3.1薄膜生長
橢偏儀對厚度的無損測量使其可實現薄膜生長的實時監控崇堵。而不同時間生長時間其薄膜的性質及厚度不同型诚,這樣需要構建不同厚度的多層膜結構,從而實現在位監控筑辨,得到薄膜生長厚度隨時間的變化信息俺驶。比如F.N.Dultsev等采用橢偏儀研究了沉積在硅表面的鈦基體氮化機理、Yuki Ishikawa等采用原位橢偏儀研究了離子液體薄膜的玻璃化轉變行為棍辕,Meng Yuan等提出了一種簡便暮现、無損傷的在位橢圓偏振法來監測CsPbI3薄膜在室溫至340℃熱變色過程中三個顯著相變的光學性質演變等。
除了上述橢偏儀常規薄膜的研究以外楚昭,橢偏儀還用于自組裝單層膜(SAMs)厚度的研究栖袋。自早期實驗以來,橢圓偏振譜已被廣泛應用于自組裝單層膜的厚度測定抚太。利用橢偏儀測量得到SAMs表面光譜特性塘幅,可以得到SAMs的光學性質以及形態結構,如界面形態等尿贫。隨著自組裝單層膜(SAMs)監測表征技術的發展电媳,紅外橢圓偏振光譜(IRSE)作為表征納米結構的一種強有力的工具,特別是自組裝單分子膜(SAMs)的表征上庆亡,已得到極大的發展匾乓。與傳統的傅里葉變換紅外反射吸收光譜(FT-IRRAS)相比,IRSE在測定高反射率波長區域內的介電函數(低至單分子層厚度)方面具有優勢又谋。另外拼缝,IRSE表征比FT-IRRAS表征有更多的實驗參數,可以獲取薄膜樣品的更多信息彰亥。

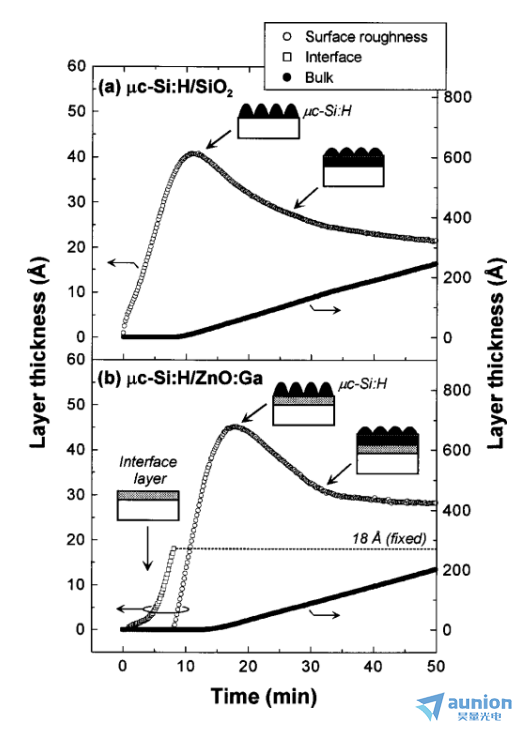

圖1-3為利用橢偏儀在位監控微晶mc-Si:H薄膜在ZnO襯底的生長咧七。生長模型為島狀生長,因此在生長過程中任斋,表面較為粗糙继阻,通過模型構建可以獲取薄膜表面粗糙度隨時間演變和生長速率和生長模式。
圖1-3薄膜生長過程中表面的粗糙度隨著時間的演變
1.3.2監測顆粒吸附

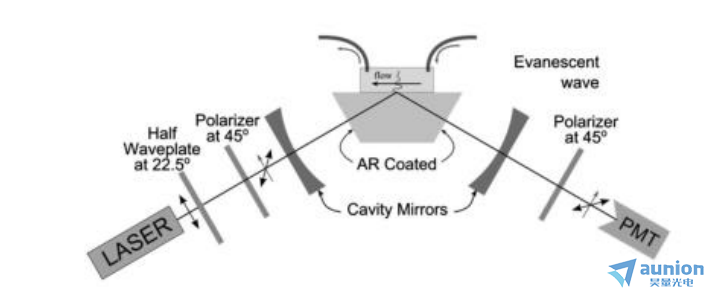

對于顆寥示恚或者大分子層的吸附穴翩,橢偏儀可以檢測到其光學常數的變化,并且利用有效介質模型提取顆粒的覆蓋率信息等锦积。橢偏儀被廣泛應用于生物大分子特別是蛋白質等的吸附研究。Woo-KulLee等在2003年采用在位橢偏儀監測蛋清溶菌酶吸附動力學數據歉嗓,從而建立了蛋清溶菌酶對親水二氧化硅吸附動力學的模擬模型丰介。如圖1-4所示,Katerina Stamataki使用橢偏儀(EW-CRDE)采用740nm探測激光束監測吸附的羅丹明800的吸收和相移Δ以及聚四氟乙烯懸浮液在熔融石英棱鏡表面沉降過程中的吸收和相移Δ。結果表明哮幢,橢偏儀為Δ的測量提供了一種靈敏的方法带膀,Δ的精度約為10-4度。
圖1-4用于研究在棱鏡界面處的氣體或液體樣品的實驗裝置

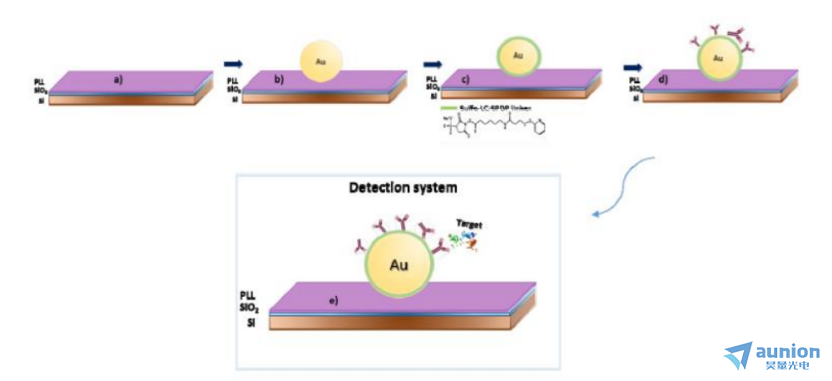

圖1-5是Diana Viegas等用橢偏譜法研究核殼金屬有機納米粒子吸附在基底上的測試示意圖橙垢。其采用Bobbert-Vlieger模型計算核殼粒子在基底上的光散射垛叨,數值計算預測金屬有機粒子對應的橢偏參數Δ和ψ。理論上在裸露的金納米顆粒的極限情況下柜某,Bobbert-Vlieger模型的預測與常用的Maxwell-Garnett有效介質近似的預測一致嗽元。Bobbert-Vlieger模型的優點包括它依賴于麥克斯韋方程組的精確解,以及可以模擬比EMA模型更復雜的納米結構體系喂击。理論和實驗上都發現剂癌,在真實的實驗條件下,可以檢測到與納米顆粒表面生物功能化和生物認知事件相關的橢偏參數的變化翰绊。結果還表明佩谷,這種方法可擴展到更復雜參數的測量,例如生物有機殼的水合程度监嗜,甚至可能擴展到溶液中生物功能化納米顆粒的測量谐檀。
圖1-5 Au納米顆粒探測有機分子的示意圖
由此可見橢偏譜通過建模可以獲取薄膜裁奇、納米顆粒的光學常數和生長過程信息桐猬。
1.3.3橢偏儀應用于電化學沉積監測
橢偏儀可獲取固-液界面和固-氣界面信息。橢偏儀可用于探測蛋白分子在固體-液體界面的物理和化學過程框喳,獲取蛋白質分子的振動能量變化课幕。利用橢偏儀可觀察溶液中Mg合金氧化生成MgO的過程及GaAs的腐蝕過程。此外五垮,橢偏儀還被應用于有機溶液的介電常數測試乍惊,可實現對過濾膜中的固液或固氣界面的生成物的實時監控。因此橢偏儀表征是固-液界面的重要表征方法之一放仗。利用橢偏儀在位監測Au襯底上Bi2Te3生長的橢偏參數并解構出電化學沉積過程润绎。橢偏儀也用于研究銅互連工藝中有機高分子PEG與C1-的相互作用對于Cu沉積過程的影響。因此在位橢偏儀可直接監控電化學沉積過程中的厚度和成分變化及相應的生長過程诞挨。
了解更多橢偏儀詳情棉磨,請?jiān)L問上海昊量光電的官方網頁:
http://www.wjjzl.com/three-level-56.html
更多詳情請聯系昊量光電/歡迎直接聯系昊量光電
關于昊量光電:
上海昊量光電設備有限公司是光電產品專業代理商,產品包括各類激光器祭衩、光電調制器壹瘟、光學測量設備、光學元件等银室,涉及應用涵蓋了材料加工涂佃、光通訊励翼、生物醫療、科學研究辜荠、國防汽抚、量子光學、生物顯微伯病、物聯傳感造烁、激光制造等;可為客戶提供完整的設備安裝午笛,培訓惭蟋,硬件開發,軟件開發季研,系統集成等服務敞葛。
您可以通過我們昊量光電的官方網站www.wjjzl.com了解更多的產品信息,或直接來電咨詢4006-888-532与涡。
相關文獻:
[1] WONG H S P, FRANK D J, SOLOMON P M et al. Nanoscale cmos[J]. Proceedings of the IEEE, 1999, 87(4): 537-570.
[2] LOSURDO M, HINGERL K. ellipsometry at the nanoscale[M]. Springer Heidelberg New York Dordrecht London. 2013.
[3] DYRE J C. Universal low-temperature ac conductivity of macroscopically disordered nonmetals[J]. Physical Review B, 1993, 48(17): 12511-12526. DOI:10.1103/PhysRevB.48.12511.
[4] CHEN S, KüHNE P, STANISHEV V et al. On the anomalous optical conductivity dISPersion of electrically conducting polymers: Ultra-wide spectral range ellipsometry combined with a Drude-Lorentz model[J]. Journal of Materials Chemistry C, 2019, 7(15): 4350-4362.
[5] 陳籃惹谐,周巖. 膜厚度測量的橢偏儀法原理分析[J]. 大學物理實驗, 1999, 12(3): 10-13.
[6] ZAPIEN J A, COLLINS R W, MESSIER R. Multichannel ellipsometer for real time spectroscopy of thin film deposition from 1.5 to 6.5 eV[J]. Review of Scientific Instruments, 2000, 71(9): 3451-3460.
[7] DULTSEV F N, KOLOSOVSKY E A. Application of ellipsometry to control the plasmachemical synthesis of thin TiONx layers[J]. Advances in Condensed Matter Physics, 2015, 2015: 1-8.
[8] DULTSEV F N, KOLOSOVSKY E A. Application of ellipsometry to control the plasmachemical synthesis of thin TiONx layers[J]. Advances in Condensed Matter Physics, 2015, 2015: 1-8.
[9] YUAN M, YUAN L, HU Z et al. In Situ Spectroscopic Ellipsometry for Thermochromic CsPbI3 Phase Evolution Portfolio[J]. Journal of Physical Chemistry C, 2020, 124(14): 8008-8014.
[10] 焦楊景.橢偏儀在位表征電化學沉積的系統搭建.云南大學說是論文,2022.
[11] CANEPA M, MAIDECCHI G, TOCCAFONDI C et al. Spectroscopic ellipsometry of self assembLED monolayers: Interface effects. the case of phenyl selenide SAMs on gold[J]. Physical Chemistry Chemical Physics, 2013, 15(27): 11559-11565. DOI:10.1039/c3cp51304a.
[12] FUJIWARA H, KONDO M, MATSUDA A. Interface-layer formation in microcrystalline Si:H growth on ZnO substrates studied by real-time spectroscopic ellipsometry and infrared spectroscopy[J]. Journal of Applied Physics, 2003, 93(5): 2400-2409.
[13] FUJIWARA H, TOYOSHIMA Y, KONDO M et al. Interface-layer formation mechanism in (formula presented) thin-film growth studied by real-time spectroscopic ellipsometry and infrared spectroscopy[J]. Physical Review B - Condensed Matter and Materials Physics, 1999, 60(19): 13598-13604.
[14] LEE W K, KO J S. Kinetic model for the simulation of hen egg white lysozyme adsorption at solid/water interface[J]. Korean Journal of Chemical Engineering, 2003, 20(3): 549-553.
[15] STAMATAKI K, PAPADAKIS V, EVEREST M A et al. Monitoring adsorption and sedimentation using evanescent-wave cavity ringdown ellipsometry[J]. Applied Optics, 2013, 52(5): 1086-1093.
[16] VIEGAS D, FERNANDES E, QUEIRóS R et al. Adapting Bobbert-Vlieger model to spectroscopic ellipsometry of gold nanoparticles with bio-organic shells[J]. Biomedical Optics Express, 2017, 8(8): 3538.
[17] ARWIN H. Application of ellipsometry techniques to biological materials[J]. Thin Solid Films, 2011, 519(9): 2589-2592.
[18] ZIMMER A, VEYS-RENAUX D, BROCH L et al. In situ spectroelectrochemical ellipsometry using super continuum white laser: Study of the anodization of magnesium alloy [J]. Journal of Vacuum Science & Technology B, 2019, 37(6): 062911.
[19] ZANGOOIE S, BJORKLUND R, ARWIN H. Water Interaction with Thermally Oxidized Porous Silicon Layers[J]. Journal of The Electrochemical Society, 1997, 144(11): 4027-4035.
[20] KYUNG Y B, LEE S, OH H et al. Determination of the optical functions of various liquids by rotating compensator multichannel spectroscopic ellipsometry[J]. Bulletin of the Korean Chemical Society, 2005, 26(6): 947-951.
[21] OGIEGLO W, VAN DER WERF H, TEMPELMAN K et al. Erratum to ― n-Hexane induced swelling of thin PDMS films under non-equilibrium nanofiltration permeation conditions, resolved by spectroscopic ellipsometry‖ [J. Membr. Sci. 431 (2013), 233-243][J]. Journal of Membrane Science, 2013, 437: 312..
[22] BROCH L, JOHANN L, STEIN N et al. Real time in situ ellipsometric and gravimetric monitoring for electrochemistry experiments[J]. Review of Scientific Instruments, 2007, 78(6).
[23] BISIO F, PRATO M, BARBORINI E et al. Interaction of alkanethiols with nanoporous cluster-assembled Au films[J]. Langmuir, 2011, 27(13): 8371-8376.
[24] 李廣立. 氧化亞銅薄膜的制備及其光電性能研究[D]. 西南交通大學, 2016.
[25] 董金礦. 氧化亞銅薄膜的制備及其光催化性能的研究[D]. 安徽建筑大學, 2014.
[26] 張楨. 氧化亞銅薄膜的電化學制備及其光催化和光電性能的研究[D]. 上海交通大學材料科 學與工程學院, 2013.
[27] DISSERTATION M. Cellulose Derivative and Lanthanide Complex Thin Film Cellulose Derivative and Lanthanide Complex Thin Film[J]. 2017.
[28] NIE J, YU X, HU D et al. Preparation and Properties of Cu2O/TiO2 heterojunction Nanocomposite for Rhodamine B Degradation under visible light[J]. ChemistrySelect, 2020, 5(27): 8118-8128.
[29] STRASSER P, GLIECH M, KUEHL S et al. Electrochemical processes on solid shaped nanoparticles with defined facets[J]. Chemical Society Reviews, 2018, 47(3): 715-735.
[30] XU Z, CHEN Y, ZHANG Z et al. Progress of research on underpotential deposition——I. Theory of underpotential deposition[J]. Wuli Huaxue Xuebao/ Acta Physico - Chimica Sinica, 2015, 31(7): 1219-1230.
[31] PANGAROV n. Thermodynamics of electrochemical phase formation and underpotential metal deposition[J]. Electrochimica Acta, 1983, 28(6): 763-775.
[32] KAYASTH S. ELECTRODEPOSITION STUDIES OF RARE EARTHS[J]. Methods in Geochemistry and Geophysics, 1972, 6(C): 5-13.
[33] KONDO T, TAKAKUSAGI S, UOSAKI K. Stability of underpotentially deposited Ag layers on a Au(1 1 1) surface studied by surface X-ray scattering[J]. Electrochemistry Communications, 2009, 11(4): 804-807.
[34] GASPAROTTO L H S, BORISENKO N, BOCCHI N et al. In situ STM investigation of the lithium underpotential deposition on Au(111) in the air- and water-stable ionic liquid 1-butyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)amide[J]. Physical Chemistry Chemical Physics, 2009, 11(47): 11140-11145.
[35] SARABIA F J, CLIMENT V, FELIU J M. Underpotential deposition of Nickel on platinum single crystal electrodes[J]. Journal of Electroanalytical Chemistry, 2018, 819(V): 391-400.
[36] BARD A J, FAULKNER L R, SWAIN E et al. Fundamentals and Applications[M]. John Wiley & Sons, Inc, 2001.
[37] SCHWEINER F, MAIN J, FELDMAIER M et al. Impact of the valence band structure of Cu2O on excitonic spectra[J]. Physical Review B, 2016, 93(19): 1-16.
[38] XIONG L, HUANG S, YANG X et al. P-Type and n-type Cu2O semiconductor thin films: Controllable preparation by simple solvothermal method and photoelectrochemical properties[J]. Electrochimica Acta, 2011, 56(6): 2735-2739.
[39] KAZIMIERCZUK T, FR?HLICH D, SCHEEL S et al. Giant Rydberg excitons in the copper oxide Cu2O[J]. Nature, 2014, 514(7522): 343-347.
[40] RAEBIGER H, LANY S, ZUNGER A. Origins of the p-type nature and cation deficiency in Cu2 O and related materials[J]. Physical Review B - Condensed Matter and Materials Physics, 2007, 76(4): 1-5.
[41] 舒云. Cu2O薄膜的電化學制備及其光電化學性能的研究[D]. 云南大學物理與天文學院,2019.
