超緊湊DPSS調Q激光器
SOL是功率從4W到40W范圍內結構很緊湊的調Q 二極管泵浦脈沖激光器，電源和激光器集成到一起疗认，堅固耐用和重量輕完残！
關鍵詞：compact DPSS Q-switched Laser，玻璃內雕横漏，激光雷達谨设，脈沖激光器，固體激光器缎浇，調Q激光器扎拣，半導體泵浦激光器

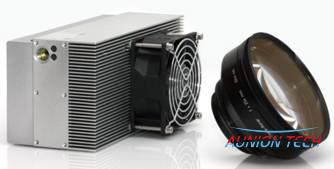

SOL 1064/532nm 高功率DPSS調Q激光器
SOL是功率從4W到40W范圍內結構緊湊的調Q 二極管泵浦脈沖激光器，基于一體化的設計素跺，電源和激光器集成到一起二蓝，故而具有堅固耐用和重量輕的特點。同時具有高峰值功率和出色的光束質量指厌，使其適合集成于打標和微加工等設備中刊愚。
產品特點
峰值功率高達300kW
重復頻率高到200 kHz
單脈沖能量可調，可用于激光灰度圖案打印 (參看下頁應用圖例)
風冷踩验，可選水冷
一體化設計鸥诽，結構緊湊商玫，堅固耐用，重量輕小于4.5kg衙传，易于集成到設備中
可替換二極管决帖，便于維修
SOL 1064nm
Average Output Power | 4W | 6W | 10W | 20W | 30W | 40W | |
Wavelength | 1064nm | ||||||
Rep.rate | up to 25 kHz | 10 kHz to 100 kHz | |||||
CW Operating Mode | no | yes | |||||
Pulse width | 60 to 90 ns | 6 to 60 ns | |||||
Polarization | Linear 100:1(optional: circular polarization) | ||||||
beam diameter | < 8 mm (integrated beam expander) | ||||||
beam quality(M2) | 1.5 | <1.5 | 2 | <2 | <2.5 | ||
Cooling | Air cooLED – integrated thermostatic fan | ||||||
Power Supply | 24 V DC | ||||||
Footprint &Weight | 23 x 10 x 9 cm– 4.5 kg | ||||||
SOL 532nm
Sol Models | 3W-532 | 5W-532 | 10W-532 | |
Average Output Power | 3W | 5W | 10W | |
Wavelength | 532nm | |||
Rep.rate | 10 kHz to 100 kHz | |||
CW Operating Mode | no | |||
Pulse width | 6 to 60 ns | |||
Polarization | Linear 100:1(optional: circular polarization) | |||
Beam Diameter | < 8 mm | |||
Beam Quality(M2) | <1.3 | 1.5 | <2 | |
Cooling | Air cooled – integrated thermostatic fan | |||
Power Supply | 24 V DC | |||
Footprint &Weight | 23 x 10 x 9 cm– 4.5 kg | |||
應用領域
材料加工 打標 劃線 薄膜去除 微加工非線性光學

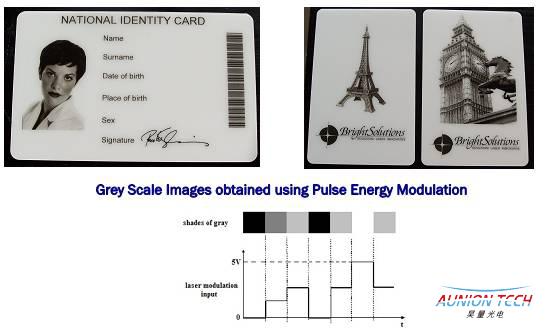

激光灰度圖案打印
