橢偏儀在位表征電化學沉積的系統搭建（十五）- 弧形電解池的設計

3.2弧形電解池

3.2.1池體樣式

綜合考慮橢偏儀的測量特點嗤谚，初步設計了如圖3-2(a)所示的池體模型圖棺蛛。可以看到該池體結構由兩邊的長方體和與之相連的半圓柱體及基底即工作電極載體構成巩步。

池體的核心部分之一為中間的觀察窗口旁赊，為了盡可能的減小橢偏儀的入射光在經過電解池池壁和溶液的損耗，則入射光必須垂直于池體壁入射椅野；而橢偏儀的zui佳測量入射角在70°左右终畅，是不固定的。綜合考慮光的損耗及橢偏儀的測量特點竟闪，選擇了半圓柱體作為觀察窗口离福，這樣就可以在既可以滿足入射光垂直于池體壁入射又可以在一定范圍內調節入射角度。

要使橢偏儀的出射光垂直入射后又經過一個對稱的路徑出射炼蛤，則對基底工作面必須與半圓柱的圓面在同一平面妖爷，所以設計了如圖3-2(d)所示的一個卡槽式載體，只要保證工作電極面和卡槽上表面齊平鲸湃，當放置到半圓柱池底時就可滿足要求赠涮。

兩邊的長方體設計一是為了使池體體積增大，增加電解質暗挑，便于電極的放置笋除；二是這樣設計可以使得電極在反應的過程中形成對稱的物質傳遞路徑。

3.2.2池體尺寸

中間的觀察窗口半圓柱體的尺寸設計如3-2(c)所示炸裆，由于觀察窗口工作時充滿溶液垃它，所以要考慮橢偏儀入射光在溶液中的光程，再結合后面電極的放置，設計了一個半徑為15mm国拇，池體壁厚為2mm的半圓體洛史。在材料選取上，考慮到通常使用的橢偏儀入射波長是300nm到800nm波段酱吝，且要減小池體壁對光的損耗也殖，所以觀察窗口選用石英玻璃制作。兩邊長方體的尺寸設計如圖3-2(b)所示务热，考慮的長度以及溶液的體積忆嗜，長方體的長寬高分別為60mm、60mm及80mm崎岂。由于兩邊的池體設計主要起到增加溶液體積的作用捆毫，所以其制作材質沒有特別的要求，這里選用5mm厚的亞克力板冲甘。

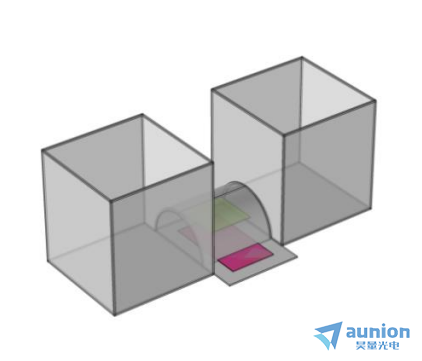

圖3-2池體模型圖及尺寸設計圖

對于工作電極載體的設計如圖3-2(d)所示绩卤，考慮到觀察窗口的大小及電極的大小，其尺寸為20mm×55mm×5mm江醇，材質選用5mm厚的亞克力板濒憋，這樣當半圓柱體組裝到兩邊的長方體后，把電極槽放到底面使得其上平面剛好是圓柱體的圓面嫁审，下底面剛好和長方體底面齊平跋炕。為了使電極放到電極槽后其工作面和其槽面平行，在長方體中間開鑿一個長寬高分別為35mm律适、11mm、2mm的槽遏插，這樣電極就可以和觀察窗口的圓柱圓面在同一個平面上捂贿，便于后續測試。

3.2.3電極的放置

如圖3-3所示胳嘲，紅色部分為工作電極如圖放到電極載體的卡槽里厂僧，有一部分在池體之外便于電極的連接；綠色部分為對電極了牛，它平行于工作電極置于如圖位置颜屠，后面實物用L型鉑網電極；另外還有一個參比電極選用Ag/AgCl鹰祸，圖中沒畫出甫窟，用常見的毛細管靠近工作電極面。

圖3-3電極放置圖
