3.3.2長方形流動微腔

為了解決溶液微圓形腔體溶液注入困難、溶液少及反應產生氣泡的問題飒责，進一步對腔體進行改進赘娄，得到微流腔體。圖3-18是微流腔體制作過程示意圖宏蛉，首先準備好ITO遣臼、EVA膠膜、特氟龍細管拾并、Au/Si揍堰，把EVA膠膜切成內為25px×62.5px，外為37.5px×75px的長方形嗅义，然后從上到下依次把ITO屏歹、EVA膠膜/特氟龍細管、Au/Si疊好置于加熱平臺之碗，在150℃下加熱蝙眶，使得EVA軟化粘合池體，zui后冷卻得到成品褪那。

該池體工作電極即為Au/Si基底幽纷，上端的ITO即為對電極式塌，溶液的進出由兩邊的特氟龍細管實現，通常制作完成后的微腔厚度和特氟龍細管一致友浸，約為1mm峰尝。該微腔具有液層薄、溶化充足且流動可以消除ITO上產生的氣泡等優點尾菇。

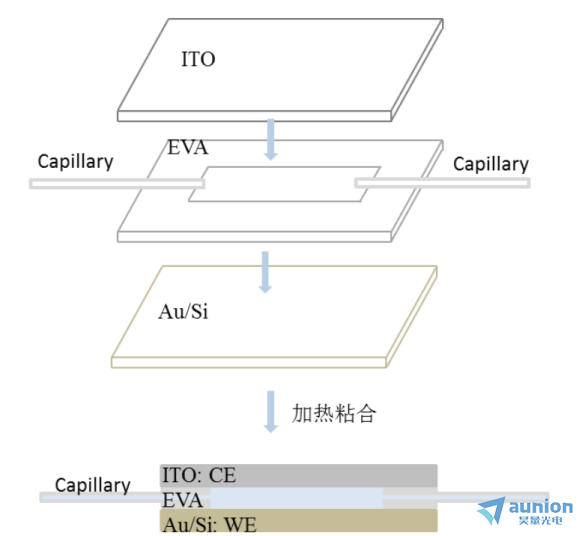

圖31-18流動型微腔示意圖

用該池體對不同濃度醋酸鉛溶液進行測試境析，得到的結果如圖3-19所示∨晌埽可以看到有無溶液加入劳淆，測試得到的橢偏參數峰位及數值上都存在差別。但是在加不同濃度的溶液(去離子水默赂、1M醋酸鈉沛鸵、1M的醋酸鈉和5/10/15/20mM的醋酸鉛)后得到的橢偏參數數值和趨勢都一致。這和前面所述的半圓弧型電解池在不同濃度的醋酸鉛溶液中橢偏測試結果一致缆八，同樣說明在醋酸鉛溶液中曲掰，其濃度橢偏測試參數的影響可忽略不計。

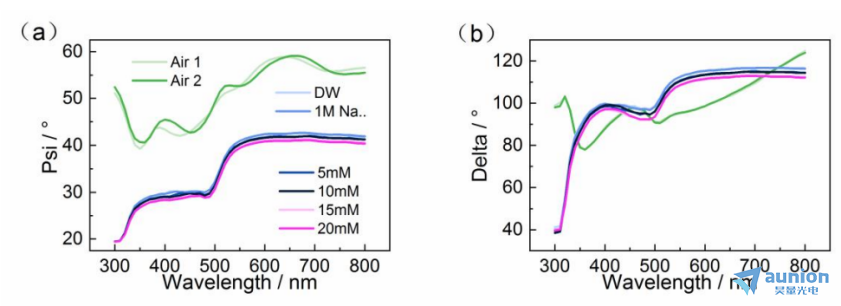

圖3-19不同條件下EVA腔體橢偏測試結果Psi奈辰；(b)Delta

如圖3-20所示栏妖，是用該池體進行沉積薄膜的結果。電解液為0.02MCu(CH₃COO)_2奖恰，0.1MCH₃COONa吊趾，Au/Si為工作電極，ITO為對電極瑟啃，-0.4mA恒壓沉積论泛。對比沉積前后腔體圖可知，用該池體可以進行沉積。與前圓環電極對比可以看到，ITO上不再有氣泡存在刚照，因?yàn)楫a(chǎn)生的氣泡都被流動的溶液帶走了。因溶液可以流動剖笙，故可克服圓環電極溶液少的缺點。所以后續沉積薄膜實驗的橢偏儀監測選用該流動池體進行。

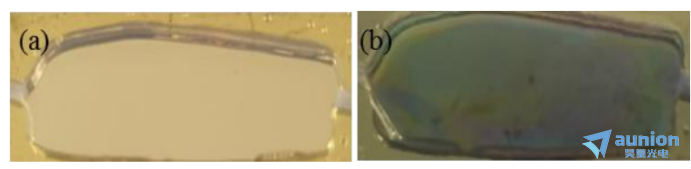

圖3-20流動型微腔沉積前沉積后實物圖

3.4小結

本文主要介紹了研究中實驗裝置的設計及測試的過程，主要包含半圓弧型器件微元腔體器件载绿。首先設計完成半圓弧器件，實現了把沉積過程和橢偏儀測試相結合油航，觀察窗口選用石英玻璃，理論上zui大限度減小了光的損耗怀浆。但是它的池體設計太大使得溶液浪費且測試過程中基底的更換谊囚、池體的密封困難怕享。然后完成圓環型微元腔體的設計及制作，其足夠小的腔體減小了溶液對橢偏測試帶來的影響镰踏。但是容納的溶液會帶來沉積離子不夠的問題且經過實驗發現對電極ITO上會出現氣泡函筋，影響橢偏測試，所以在此基礎上設計制作完成了長方形微流腔體奠伪。該設計成功解決了氣泡和溶液少所帶來的問題跌帐，故而后續實驗將采用長方形微流腔體。
