橢偏儀在位表征電化學沉積的系統搭建（二十三）- 全波段沉積過程的準在位測試分析-不同沉積時間所對應的橢偏參數

1罚斗、不同沉積時間所對應的橢偏參數Psi、Delta搀愧、R

圖4-5是得到的不同沉積時間橢偏參數Psi和Delta及反射率R隨著波長的變化，對比0s的圖線疆偿，Psi咱筛、Delta、α及R值在整體上都是減小的杆故，整體趨勢較相似迅箩，但存在峰位的增加及峰位的移動。從圖4-5(a处铛、e)來看饲趋，與0s相比，不同沉積時間Psi值隨波長的變化趨勢的大致相同撤蟆。不同沉積時間的Psi值在300nm到500nm波段變化較小奕塑，相較于0s時在330nm處出現峰位。沉積時間為180s時家肯，波長在500-800nm的長波范圍龄砰，其值從襯底的44°減小到30°左右。在沉積時間增加到540s讨衣、900s换棚、1080s時，在約540nm處出現一個較明顯的波包反镇。不同時間測試得到的Psi值有變化固蚤，這也意味測試的基底表面發生了變化。圖4-5(b歹茶、f)中顯示橢偏參數Delta值隨著時間的變化與橢偏參數Psi的趨勢一致夕玩。在長波500-800nm的范圍內得到的不同時間的Delta值從Au襯底所對應120°減小到70°附近你弦。當沉積時間增加到540s、900s风秤、1080s時鳖目，約在540nm處出現較明顯的峰位。Delta值同樣顯示出測試基底表面發生了改變缤弦。圖4-5(c领迈、g)是吸收系數α隨不同沉積時將隨波長的變化，和0s相比碍沐，整體上變化趨勢相似狸捅，但是在數值及吸收波包上存在變化。在300-500nm波段不同沉積時間變化趨勢及數值比較接近累提，且都在大約330nm處出現新的吸收波包尘喝。在500-800nm波段，540s斋陪、900s朽褪、1080s都在500-550nm波段出現新的波包且隨著時間的增加存在紅移現象。數值的變化及新的吸收波包的出現无虚，可能是由于沉積的CU₂O帶來的缔赠，有待進一步驗證。圖4-5(d友题、h)中顯示反射系數R值隨著時間的變化嗤堰，其變化規律和吸收率相似。當沉積時間為180s的時候度宦，R的值大約從Au基底的1附近降為0.3左右踢匣，在波長為300-500nm之間存在兩個波包(330nm，400nm),在波長為500-800nm之間存在兩個波包(540nm戈抄，630nm)拇泣。當沉積時間為360s時與180s的曲線很接近邻眷，但是在長波500-800nm減為1個較明顯的波包，大約在600nm附近。當沉積時間增加到540s時臭杰，在500nm-800nm范圍出現兩個比180s更大的波包(510nm茸塞，660nm)派近。到720s時腾节，R值隨波長的變化與360s一致。到900s和1080s時崭捍，R值隨波長的變化與540s一致尸折，但500nm到800nm的兩個波包峰位有所變化∫笊撸總體上看实夹，在短波段R值隨著沉積時間的變化十分微小且曲線比較光滑橄浓，但是在長波段會隨著沉積時間的不同上下波動且曲線本身也存在波動。說明長波對基底表面變化更敏感亮航，對測試信息影響更大荸实。對比文獻中Au的反射率知道其在長波段的反射率接近1與0s時的R相似，故認為在沒有沉積之前整個池體橢偏數據主要反應的是Au基底的信息缴淋。與沉積0s相比准给，不同沉積時間的反射率R減小，說明Au襯底的信息減少重抖，這是由于CU₂O的沉積導致露氮。

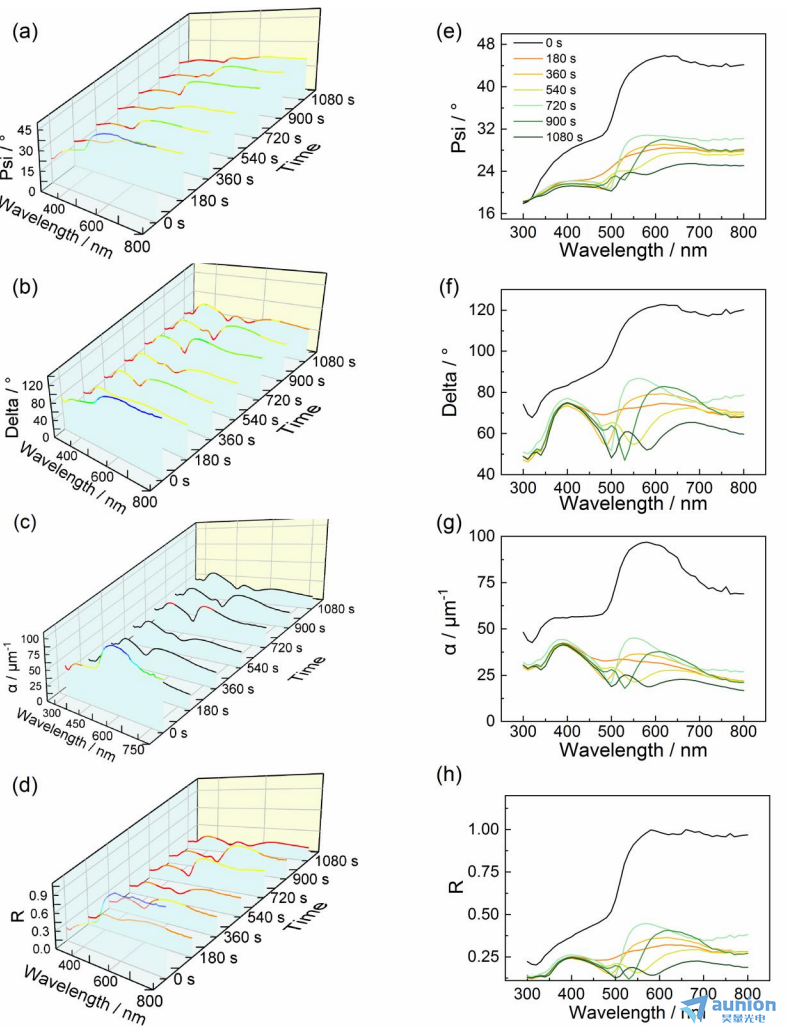

圖4-5不同沉積時間(180s,360s,720s,1080s)的橢偏數據：

(a，e)Psi钟沛；

(b畔规，f)Delta；

(c恨统，g)α叁扫；

(d，h)R
