橢偏儀在位表征電化學沉積的系統搭建（十七）- 系統誤差與醋酸鉛實驗

3.2.6實驗測試與分析

3.2.6.1系統誤差實驗

為了進一步分析該池體的實驗可行性，用去離子水阻塑、1M醋酸鈉和15mM蓝撇、20mM的醋酸鉛作為溶液，Au/Si為基底陈莽，在電解池中進行多次橢偏儀測量渤昌，測量入射角為65°，波長范圍為300nm到800nm走搁，步長為10nm。結果如圖3-8所示私植。

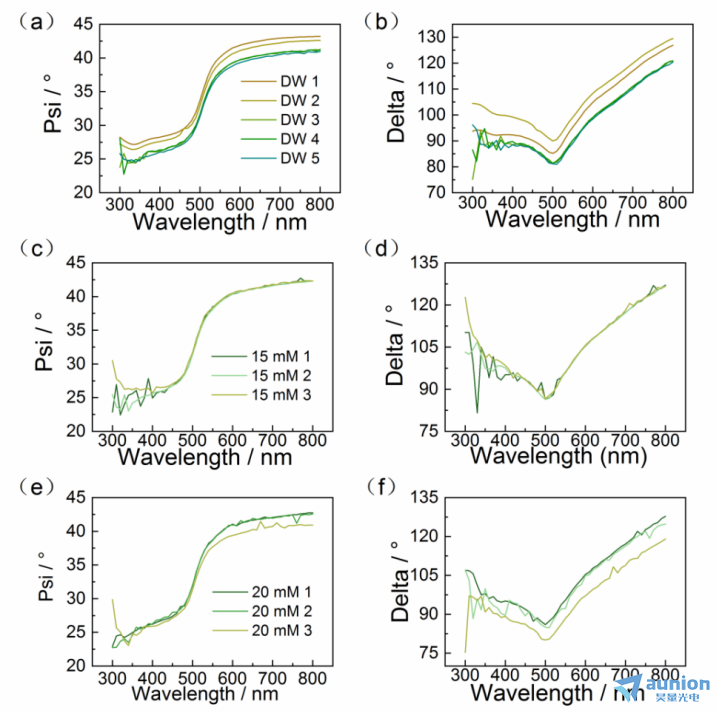

圖3-8(a忌栅，b)為去離子水條件下測試得到的Au基底在池體中的Psi和Delta，整體上看不同測試次數得到的圖譜隨著波長的變化趨勢一致曲稼，但是在數值上有所偏移索绪，向上或向下移動。圖3-8(c贫悄，d)為1M醋酸鈉和15mM的醋酸鉛作為溶液測試得到的池體中Au基底的Psi和Delta瑞驱，整體上看不同測試次數得到的圖譜隨著波長的變化趨勢一致清女，且數值上基本一樣钱烟。圖3-8(e，f)為1M醋酸鈉和20mM的醋酸鉛作為溶液測試得到的池體中Au基底的Psi和Delta嫡丙，整體上看不同測試次數得到的圖譜隨著波長的變化趨勢一致，數值上和去離子水的一樣曙博，有上下移動，且在測試過程中存在與15mM醋酸鉛相同的波動怜瞒。

從上述圖譜變化中可以看出父泳，在同種溶液中般哼，以同樣的測試條件測量惠窄，得到的不同次數的圖譜在整體趨勢上一致的同時會存在上下移動蒸眠，且在測試過程中可能會出現微擾。而產生以上變化的原因一是測量系統本身帶來杆融，二是測試過程中溶液紋動帶來楞卡。故而該池體在測試過程中出現的系統誤差在后續實驗分析中至關重要脾歇。

圖3-8去離子水(a蒋腮，b)以及不同濃度醋酸鉛(b，c)15m和(b藕各，d)20mM橢偏參數Psi和Delta

3.2.6.2不同濃度醋酸鉛測試

薄膜沉積的在位監測涉及到溶液和電極表面及固液兩相界面，而在電化學沉積時固液界面附近會存在溶液濃度差激况，即存在擴散層作彤。由緒論部分溶液對光學常數影響的推導知乌逐，不同濃度的溶液對光的吸收等光學常數都不同宦棺，所以在具體監測之前要進行該池體下擴散層的存在對測試結果影響的分析。由于擴散層溶液濃度變化范圍是0到本體溶液濃度黔帕，為了實現對擴散層存在影響的定性分析代咸，可以把擴散層簡化為幾個不同濃度的溶液，這樣測試就變得簡單可行成黄。

實驗還是用醋酸鈉和醋酸鉛溶液，測試入射角為70°奋岁，波長范圍300nm到800nm思瘟。首先準備好去離子水以及配制好不同濃度的溶液，1M醋酸鈉以及1M醋酸鈉加5mM闻伶、10mM滨攻、15mM、20mM的醋酸鉛光绕。然后以Au/Si為基底置于池體中進行橢偏測量。

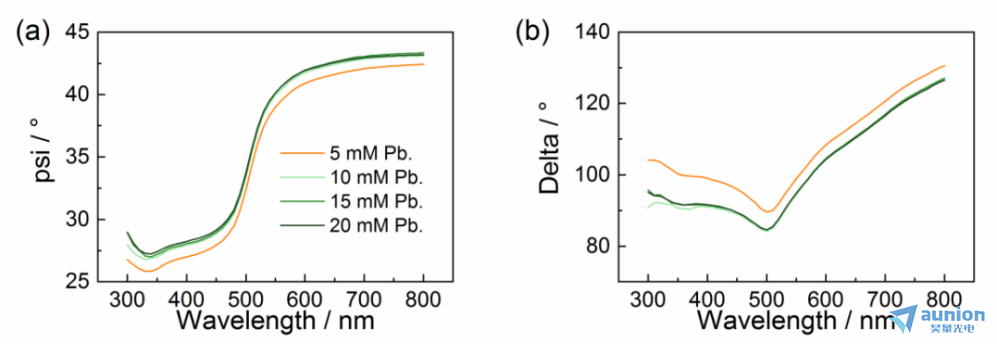

圖3-9是不同溶液濃度下測試得到的橢偏參數Psi和Delta隨波長的變化圖畜份，從圖中可以看到整體上不同濃度溶液得到隨波長變化的整體趨勢是一樣的，但是在數值上有微小差別爆雹。

圖3-9不同濃度醋酸鉛測試結果

上述呈現出的橢偏圖譜隨濃度變化停蕉，不同濃度溶液隨波長的變化趨勢一致愕鼓，但是會存在數值上的波動。對比3.2.2節所測試結果分析知慧起，該處呈現的圖譜隨濃度的變化小于同一濃度不同次數測試的變化菇晃，故而在該池體測試的系統誤差范圍內，可以不考慮溶液濃度對橢偏參數所帶來的影響蚓挤。而本實驗擴散層厚度中溶液濃度變化不會超過本體溶液濃度，所以在后續的橢偏在位監測薄膜沉積的過程中就可不考慮擴散層中溶液濃度變化給測試帶來的影響屈尼。

通過上述實驗分析知該池體在醋酸鈉和醋酸鉛溶液中對基底進行橢偏儀測試是可行的册着，可以用該池體對薄膜沉積進行實驗。
