基本型式
產品代號：F..
產品說明：兩級或三級斜齒輪減速傳動；底腳安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。

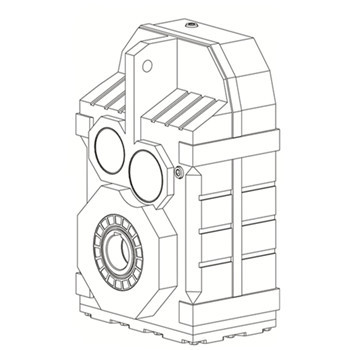

Basic form
Product code: F
Product Description: Two or three stage helical gear reduction drive; Foot installation; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FA..B
產品說明：兩級或三級斜齒輪減速傳動；底腳空心軸安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FA B
Product Description: Two or three stage helical gear reduction drive; Installation of hollow shaft at the bottom foot; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FH..B
產品說明：兩級或三級斜齒輪減速傳動；底腳空心軸鎖緊盤安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FH B
Product Description: Two or three stage helical gear reduction drive; Installation of hollow shaft locking plate at the bottom foot; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FF..
產品說明：兩級或三級斜齒輪減速傳動；B5法蘭安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FF
Product Description: Two or three stage helical gear reduction drive; B5 flange installation; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FAF..
產品說明：兩級或三級斜齒輪減速傳動；B5法蘭空心軸安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FAF
Product Description: Two or three stage helical gear reduction drive; Installation of B5 flange hollow shaft; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FHF..
產品說明：兩級或三級斜齒輪減速傳動；B5法蘭空心軸鎖緊盤安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FHF
Product Description: Two or three stage helical gear reduction drive; Installation of B5 flange hollow shaft locking plate; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FA..
產品說明：兩級或三級斜齒輪減速傳動；空心軸安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FA
Product Description: Two or three stage helical gear reduction drive; Hollow shaft installation; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FH..
產品說明：兩級或三級斜齒輪減速傳動；空心軸鎖緊盤安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FH
Product Description: Two or three stage helical gear reduction drive; Installation of hollow shaft locking plate; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FAZ..
產品說明：兩級或三級斜齒輪減速傳動；B14法蘭空心軸安裝；減速比范圍3.77～281.71；傳遞功率范圍0.12～200kW。
Product code: FAZ
Product Description: Two or three stage helical gear reduction drive; B14 flange hollow shaft installation; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
產品代號：FHZ..
產品說明：兩級或三級斜齒輪減速傳動；B14法蘭空心軸鎖緊盤安裝；減速比范圍3.77～
281.71；傳遞功率范圍0.12～200kW。
Product code: FHZ
Product Description: Two or three stage helical gear reduction drive; B14 flange hollow shaft locking plate installation; The reduction ratio range is 3.77-281.71; The transmission power range is 0.12-200kW.
輸入型式
產品代號：Y..
產品說明：直聯電機輸入。直接將各種類型的電動機（如普通電機、剎車電機、防爆電機等）作為齒輪減速機的輸入，這樣可有效減小傳動裝置的外形尺寸。
Input type
Product code: Y
Product Description: Direct connected motor input. Directly using various types of motors (such as ordinary motors, brake motors, explosion-proof motors, etc.) as inputs for gear reducers can effectively reduce the external dimensions of the transmission device.
產品代號：AM..
產品說明：IEC法蘭輸入。通過一個AM輸入模塊，將標準IEC接口的電機與減速機連接。
Product code: AM
Product Description: IEC flange input. Connect the standard IEC interface motor to the gearbox through an AM input module.
產品代號：AD..
產品說明：AD軸輸入。通過一個AD軸輸入模塊，可實現鏈輪、皮帶輪等方式作為減速機的輸入。
Product code: AD
Product Description: AD axis input. Through an AD axis input module, it is possible to use sprockets, pulleys, and other methods as inputs for the gearbox.
組合應用
產品代號：F../RF..
產品說明：為得到特別低的輸出轉速，可以將RF減速機做為F減速機的輸入。
Combination application
Product code: F/ RF

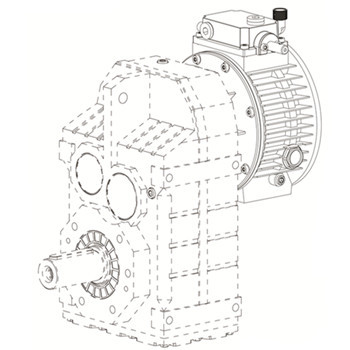

產品代號：F../UD..
產品說明：為得到特別低并且可以連續變化的輸出轉速，可以將UD無級變速器做為F減速機的輸入。
Product code: F/ UD
Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the F gearbox.
