基本型式

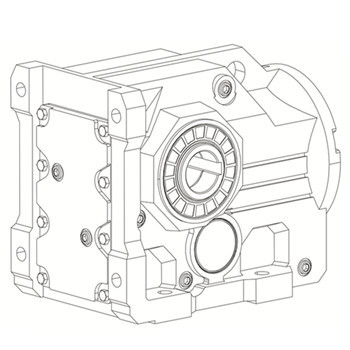

產品代號：K..
產品說明：三級弧齒＋斜齒輪減速傳動；底腳安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: K
Product Description: Three stage spiral tooth+helical gear reduction transmission; Foot installation; The reduction ratio range is 3.98 to 197.37; Transmission power range: 0.12-200kW.
產品代號：KA..B
產品說明：三級弧齒＋斜齒輪減速傳動；底腳空心軸安裝；減速比范圍4.64～197.37；傳遞功率范圍0.12～200kW。
Product code: KA B
Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft at the bottom foot; Reduction ratio range from 4.64 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KH..B
產品說明：三級弧齒＋斜齒輪減速傳動；底腳空心軸鎖緊盤安裝；減速比范圍4.64～197.37；傳遞功率范圍0.12～200kW。
Product code: KH B
Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft locking plate at the bottom foot; Reduction ratio range from 4.64 to 197.37; The transmission power range is 0.12-200kW.

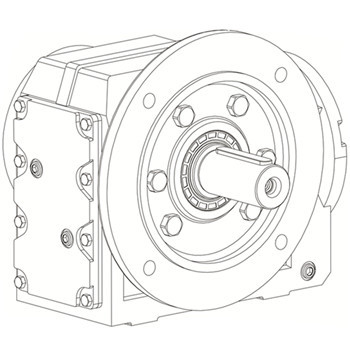

產品代號：KF..
產品說明：三級弧齒＋斜齒輪減速傳動；B5法蘭安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KF
Product Description: Three stage spiral tooth+helical gear reduction transmission; B5 flange installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KAF..
產品說明：三級弧齒＋斜齒輪減速傳動；B5法蘭空心軸安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KAF
Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of B5 flange hollow shaft; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KHF..
產品說明：三級弧齒＋斜齒輪減速傳動；B5法蘭空心軸鎖緊盤安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KHF
Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of B5 flange hollow shaft locking plate; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KA..
產品說明：三級弧齒＋斜齒輪減速傳動；空心軸安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KA
Product Description: Three stage spiral tooth+helical gear reduction transmission; Hollow shaft installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KH..
產品說明：三級弧齒＋斜齒輪減速傳動；空心軸鎖緊盤安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KH
Product Description: Three stage spiral tooth+helical gear reduction transmission; Installation of hollow shaft locking plate; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KAZ..
產品說明：三級弧齒＋斜齒輪減速傳動；B14法蘭空心軸安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KAZ
Product Description: Three stage spiral tooth+helical gear reduction transmission; B14 flange hollow shaft installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
產品代號：KHZ..
產品說明：三級弧齒＋斜齒輪減速傳動；B14法蘭空心軸鎖緊盤安裝；減速比范圍3.98～197.37；傳遞功率范圍0.12～200kW。
Product code: KHZ
Product Description: Three stage spiral tooth+helical gear reduction transmission; B14 flange hollow shaft locking plate installation; The reduction ratio range is 3.98 to 197.37; The transmission power range is 0.12-200kW.
組合應用
產品代號：K../RF..
產品說明：為得到特別低的輸出轉速，可以將RF減速機做為K減速機的輸入。
Product code: K/ RF
Product Description: To achieve a particularly low output speed, the RF gearbox can be used as the input for the K gearbox.
產品代號：K../UD..
產品說明：為得到特別低并且可以連續變化的輸出轉速，可以將UD無級變速器做為K減速機的輸入。
Product code: K/ UD
Product Description: To achieve a particularly low and continuously variable output speed, the UD continuously variable transmission can be used as the input for the K gearbox.
